How to – Azure Policy via ARM Template

If you’ve worked with Azure for a while, you would know that one of the most efficient methods of deployment is ARM templates and one of the most powerful services is Azure Policy. What you might not know, is that you can combine the two for efficient, iterative and defined deployments.

A great point I saw recently on Twitter was that a lot of technical posts highlight features and how to use them but rarely go into why you should use them. Conscious of that, here are a couple of points on why I think you should make use of Policy via Template (PvT):

  • Quick deployment time – hilariously quick.
  • Repeatable defined structures – the exact policy definition, applied to the exact scope, with no possibility of user error.
  • Confident flexibility – Templates are idempotent; need to update the definition? Update the template, deploy the update, job done.

So if the “why” makes sense to you, let’s move onto the “how”. If it doesn’t, let me know! I’d love to hear your horror stories/use cases…

Templates can be deployed in several ways, for the sake of simplicity, I’m going to use two tools here. Visual Studio Code and Powershell. Currently you can only deploy subscription scope resources via Powershell or CLI.

There are some other differences to note. The schema for the template must be:

https://schema.management.azure.com/schemas/2018-05-01/subscriptionDeploymentTemplate.json#

When deploying the template, it must be deployed to a location and given a name (the name of the template will be used if none is specified), that combination is then immutable for that location. So if you need to change location, you need to use a new name etc.

Now, let’s create our template. For this post, I am going to use an existing Template Definition and scope it to my Subscription. While you can pass the Template Parameters via Powershell Variable, for this post I am going to define them as a Template Variable. This is tricky piece of logic as they must be defined as a nested, object array. I also define the policyID via Variable. For existing definitions, you can get this via the Portal, or Powershell command

Get-AzPolicyDefinition | select PolicyDefinitionId -ExpandProperty properties | where displayName -Match "allowed locations"
{
    "$schema": "https://schema.management.azure.com/schemas/2018-05-01/subscriptionDeploymentTemplate.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {},
    "variables": {
      "policyName":"Allowed Locations",
      "policyDefinitionID":"/providers/Microsoft.Authorization/policyDefinitions/e56962a6-4747-49cd-b67b-bf8b01975c4c",
      "policyParameters":{
        "listOfAllowedLocations":{
          "value":["NorthEurope","WestEurope"]}}
    },
    "resources": [
        {
            "type": "Microsoft.Authorization/policyAssignments",
            "name": "[variables('policyName')]",
            "apiVersion": "2018-03-01",
            "properties": {
                "scope": "[subscription().id]",
                "policyDefinitionId": "[variables('policyDefinitionID')]",
                "parameters": "[variables('policyParameters')]"
            }
        }
    ]
}

Now are Policy deployment is defined and ready for use, we deploy using Powershell:

New-AzDeployment -Name "pvtDeployment" -Location northeurope -TemplateFile 'C:\Users\username\Documents\WDA\PvT.json'

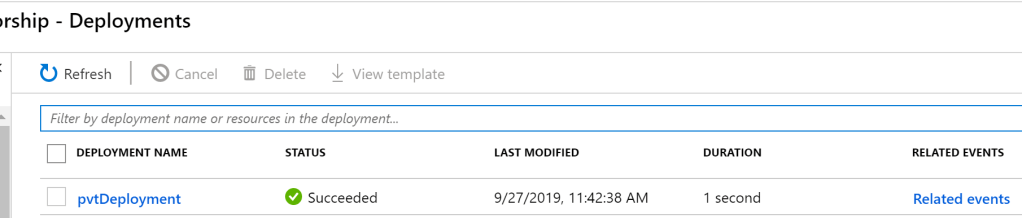

You should receive a succeeded message within your shell and you can verify via the Portal. As it was a subscription level deployment, head to your Subscription blade and check the Deployments tab. You should see the Template listed as the same name as you ran for the deployment.

You can then confirm your settings via heading to Azure Policy and the Assignments blade. You will see your Policy Definition assigned at the scope you set, using the Parameters you set.

Just to go back to an early point on why you’d use this option. Look at the duration of the deployment in the above screengrab – 1 second. You simply cannot beat that!

This can obviously be used for much more complex deployments, for example, defining your own policy inline and deploying via template. The possibilities are endless with one current exception; Subscription is highest scope you can currently use, hopefully Management Groups are on the roadmap and therefore the scaling capability is excellent.

As always, if there are any questions or suggestions, please get in touch!

Azure Resource Manager (ARM) Templates

One of the most useful aspects of a platform like Azure is the multitude of deployment options that are available. Which one you use may be down to familiarity, efficiency or sometimes nature of deployment. In this post I will discuss ARM templates which can greatly speed up your deployment cycle.

Infrastructure as Code (IaC) is the management of infrastructure (networks, virtual machines, load balancers, etc.) in a descriptive model. It functions best when using the same versioning that your DevOps team uses for source code. Similar to the principle that the same source code generates the same binary, an IaC model generates the same environment every time it is applied. Therefore, it is very beneficial to reducing deployment times as well as simplifying how resources are deployed.

An ARM template is a JSON file, in its simplest form it must contain the following definitions:

  • schema
  • content version
  • resources

For more deployment options it can also include the following:

  • parameters
  • variables
  • outputs

In general, your templates will include all of the above, this ensures the greatest level of customisation to the deployment as and when needed. Without getting too much into the technicalities of each aspect, the file will contain everything needed to build all the objects you have defined. For example, if the file builds a VM you will define the name, size, NIC used, OS profile and disk options. You have multiple choices within each definition to greater customise your deployment and these definitions can be passed as direct referrals, variables or parameters.

One thing to note, is that while these templates deploy resources via code, they cannot configure the resources. To automate that, you must consider a technology like DSC or Powershell once the template completes deployment.

JSON files are not simple to read, I deliberately haven’t included a sample as they are easier to understand as you build one. The fact that they aren’t simple makes error checking somewhat problematic. Most code editing applications that support ARM plugins will catch basic formatting errors. You can also verify the file via Azure Powershell. If you really want to confirm your template works it is best to test the deployment properly. Ideally, you could make use of a test/dev subscription to minimise costs but once the template completes, you can delete the entire resource group quite quickly.

To best understand how these templates can be of use, start with one of the simple quick start templates from Github, for example, a simple Windows server deployment – https://github.com/Azure/azure-quickstart-templates/tree/master/101-vm-simple-windows

You can then build layer upon layer of code on top of this to increase the complexity of the deployment or use one of the other samples that closer matches your intention.

For more reading, I would recommend starting with understanding the structure and syntax before moving onto the actual templates themselves here.
