How to – Migrate Azure Firewall from Classic Rules to Policy

If you have been using Azure Firewall since it went GA, you are most likely using the classic option. This means all rules are managed within the Azure Firewall resource itself. As a result, you’ve most likely noticed the below context menu pop up when accessing your resource:

The fact there is a portal driven option I personally think is great. Often “classic to new” scenarios require a rebuild, or several shell based commands. However, I found the docs a bit light in terms of details.

So this post will provide a bit more context. On the portal, you are presented with two options, migrate the existing rules to a new policy, or, attach an existing policy. Meaning you could build your policy from scratch and simply attach it, with the operation then removing the classic rules entirely.

My preference here is to attach an existing policy, however, I am not going to start from scratch. As part of creating a new firewall policy, on the rule tab, you can import your Azure Firewall rules.

This means you can capture your existing configuration, work on any changes in advance, then simply attach your newly updated policy

Two more clicks, and the Azure Firewall will replace the classic rules config with your policy. And this is the really important part – without any downtime. However, ensure you remember with my choice, I am building the policy in advance, if I make changes to that policy, they will be adhered to once live. So your changes may cause impact, but the operation of switching to policy will not.

That’s it, you’re done! A change such as this to Azure Firewall can be a concern, especially if it is handling all of your environment traffic. But this process is simple and straight forward.

As always, if any questions get in touch! Oh and if you would prefer to do this via Powershell, here are the details.

How To – Manage an NSG Using Bicep and Azure DevOps

In many Azure environments that rely on Virtual Networks, Network Security Groups (NSGs) are still king when it comes to access control. However, this post isn’t going to get into the pros and cons of that approach, that’s possibly an entire series, never mind another post!

This post is simply showing a method for managing your NSGs and rules as IaC. Using Bicep, Github and an Azure DevOps Pipeline.

Now, for anyone new to IaC, there is a learning curve. There is also a tradeoff when it comes to effort. It can often be quicker to deploy resources via portal driven methods. However, there are two fundamental reasons to deploy and manage a resource such as an NSG via IaC.

  • BCP – think version history, backup, DR deployments
  • Security – Managed releases/commits control who can approve and change your NSGs

This post keeps it simple, but the principles can expand to managing a full set of NSGs as required. It also includes deploying an empty NSG, which you wouldn’t in theory need either.

As this uses Bicep, let’s take a look at how it handles NSGs and their rules. The NSG itself is quite a simple resource, in my example I am creating it without any config, similar to when you create one in the portal, no rules included.

resource nsg 'Microsoft.Network/networkSecurityGroups@2021-05-01' = {
  name: nsgName
  location: location
  tags: {
    CreatedOn: date
    Owner: email
  }
  properties: {}
}

However, you can include security rules here as part of the properties section, details on that here. I have chosen not to, as I would like to manage the rules as separate Bicep files. As a result, I need to understand how Parent and Child resources work in Bicep. With this in mind, I have split my rules into two files, inbound and outbound, as this is the core logic split for ACLs on NSGs. You could do this other ways, an allow file, a deny file etc. but this is the one that works best for my brain πŸ™‚

In terms of the file itself, it becomes a collection of bicep resources, each being a rule itself. This gives you full and immediate granularity. I reference the rule priority in my symbolic name to allow for an order of declaration that makes sense to me, but again, lots of options here and no wrong decision. The below are example from my inbound file. I have declared the direction as a variable, as that will always be the same in this file.

resource nsgRule4000 'Microsoft.Network/networkSecurityGroups/securityRules@2021-05-01' = {
  name: '${nsgName}/IN_VNET_Deny'
  properties: {
    access: 'Deny'
    description: 'Deny default VNET traffic'
    destinationAddressPrefix: 'VirtualNetwork'
    destinationPortRange: '*'
    direction: dir
    priority: 4000
    protocol: '*'
    sourceAddressPrefix: '*'
    sourcePortRange: '*'
  }
}

resource nsgRule3000 'Microsoft.Network/networkSecurityGroups/securityRules@2021-05-01' = {
  name: '${nsgName}/IN_Ping_ALLOW'
  properties: {
    access: 'Allow'
    description: 'Allow PING from VNET'
    destinationAddressPrefix: 'VirtualNetwork'
    destinationPortRange: '*'
    direction: dir
    priority: 3000
    protocol: 'Icmp'
    sourceAddressPrefix: 'VirtualNetwork'
    sourcePortRange: '*'
  }
}

Once your files, structure, and rules are created; congratulations! You now have one of the more cumbersome resources for management addressed as code. Giving you quick RTO should it be needed, human readable documentation of your NSG rules, and version history.

How you then control who can edit rules/files by using releases or pull requests etc is up to you and your workflow. But think about including logic to require approvals or at least reviews.

The files I have used as examples are here, again they keep things very simple so if there are questions, get in touch!

How to – Build a Test Azure Network with Bicep

So first, what is Bicep? If you haven’t heard of it, I have to ask – how!? Microsoft’s new deployment language for Azure has made waves since its launch. Continuously improving and taking in a tonne of community feedback it is an interesting offering from Microsoft. To be honest, at first I wasn’t convinced by Bicep. I was slightly confused as to why it was needed. I had put in the time to understand and use ARM templates. I don’t find them super confusing, but I do understand they can be frustrating and quite complex.

That exact point is what Bicep aims to simplify. It uses declarative syntax to deploy Azure resources. This provides concise syntax, reliable type safety, and support for code reuse. Bicep is a transparent abstraction over ARM template JSON and doesn’t lose any of the JSON template capabilities. In plain English, that means that Bicep hides the complexity of ARM templates. Perhaps think of it like shorthand templates πŸ™‚

During deployment, the Bicep CLI converts a Bicep file into ARM template JSON. This means that Bicep has full feature alignment out of the box with all resource types, API versions, and properties that are valid in an ARM template.

This simplicity, combined with a common need to create a small IaaS test area is what lead me to create this post. Below I am going to outline a version of the deployment I use to create a quick and simple test environment. All documented and deployed via Bicep.

First up, what will this environment contain? I’m including resources I find helpful with configurations I find I most commonly need. I am leaving out certain resources that are less cost effective or frequently required (DDoS Standard for example), and I will allow for a conditional deployment of some that I just don’t want to wait on every time. I am looking at you Virtual Network Gateway πŸ™‚

  • Virtual Network
    • Bastion, Gateway, Firewall, Windows, Linux – subnets
  • Windows VM – Server 2019
  • Ubuntu VM – 20.04-LTS
  • Azure Bastion
  • Azure Firewall – Standard | Premium – Conditional based on Parameter
  • VNG – Conditional based on Parameter

So why does Bicep help me with the above? Genuinely I just never got time to create the same in ARM. When working on learning some Bicep I decided to use it as an opportunity to create something useful for myself.

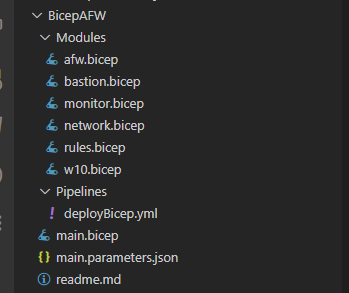

All of the above is written in Bicep and stored in a public repo here. This includes a YAML Pipeline that can allow you test and if successful, deploy the environment to Azure using Azure DevOps. For more on that test stage, see my other post here.

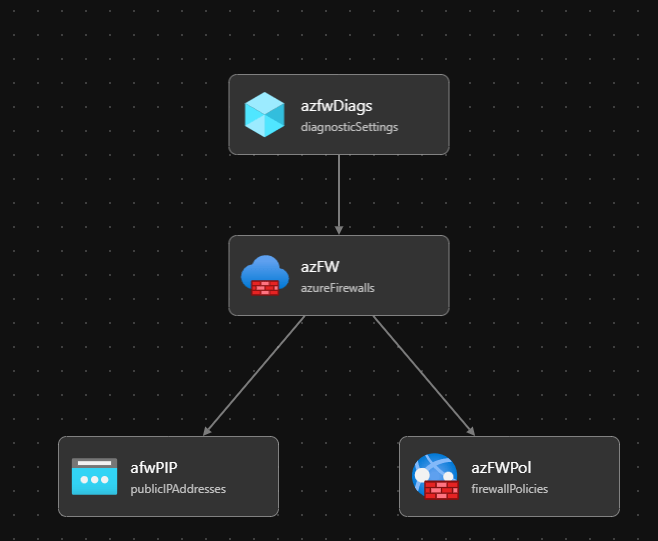

You can see a high-level of the resources that can be deployed below, which I have pulled from the Visualiser function on VS Code:

Without the VNG included, you should see the entire environment built in under seven minutes.

Adding the VNG however will increase this most commonly to at least 20 minutes.

As always, if there are any questions or feedback, get in touch! Happy Bicep-ing! πŸ’ͺ

How to – Control Azure DDoS Plan Deployment using Azure Policy

Recently I saw that there was an update released for an Azure Network Security Demo. This is an excellent lab, with a well maintained repo and several services you can really make use of.

However, I noticed that it includes Azure DDoS Protecting on the Standard tier and does not carry a warning relative to the cost due to pricing model. This is the number one prohibitive factor I see with customers when discussing enabling DDoS Standard. While the resources provisioned as a whole are by no means “cheap” DDoS is the only one that carries a monthly as opposed to hourly rate.

Don’t get me wrong, this isn’t a negative post about DDoS Standard, I think it’s a good service. Take a look at the below benefits it offers over the Basic offer:

Azure DDoS Protection Service Comparison

Also a list of the features and functionality it can provide is here on Docs.

But as I said, the cost is prohibitive, but what does that mean? Well take a look at the breakout of how the service is charged, vs something like Azure Firewall (also included in the lab).

Notice the main difference? It’s how the run rate is calculated. Firewall is per hour and DDoS is per month. This is restrictive, especially on a platform advertised often as “per-minute billing”. However, if you need the services offered, at least at you have a set price. The main challenge is for companies willing to pilot this and being met with this cost. Similarly, labs that include it for a demo that you may only need for a day or even a couple of hours.

Hat tip to Peter De Tender who spotted a change on the FAQs that if only the service is only active for a portion of time, you will receive a pro-rated bill. I haven’t seen this yet in practice, but if it’s public information you should be able to count on it!

So, based on cost alone, perhaps it is justification to block DDoS Standard from being deployed in your subscription? If that is your requirement, it is easily met via Azure Policy. The built-in policy below is perfect for this job

You can then simply choose the DDoS options as your parameters and prevent the service from being activated and avoid a cost shock!

Conversely, regardless of cost, perhaps you need it as part of a compliance or regulatory requirement. If so, Azure Policy can help here too! There are two built-in policies relative to DDoS enablement, however, if you need it to remediate rather than just audit, choose the below policy, ensuring you have a DDoS Plan created in advance.

The final point to note here is that DDoS is recommended as part of the Azure Security Benchmark if you are using Azure Security Center on the Defender tier. It requires Standard to be enabled to meet the control requirement, so be cautious and aware of committing to adhering to this standard!

As always, if there are any questions or feedback please get in touch! And remember, keep using #AZNet for your Azure Networking content!

What is – Azure Route Server

Back in March 2021 at Ignite, Microsoft announced a new network feature in Preview, Azure Route Server. As the name suggests, this service is designed to act as a routing service within your Azure footprint. Specifically, it should simplify the management of dynamic routing between your network virtual appliance (NVA) and your Virtual Network. It does so by allowing you to exchange routes via BGP between the NVA and the Azure Software Defined Network (SDN) in your Virtual Network. As it’s a fully managed service, this means you no longer need to implement and maintain multiple route tables.

This service has just gone GA, and as a result, I thought I would share some thoughts relative to its implementation and functionality.

A note, if you’re on a CSP subscription, you will se an error in the portal if you try to deploy. However, you can work around this by using PowerShell or any of the other deployment options.

First up, a little bit more on how it works. Microsoft have an excellent graphic to show you the functionality at a high-level:

Diagram showing Azure Route Server configured in a virtual network.

However, the key to understanding this service is having familiarity with implementing an NVA in an environment without it. So, say we build a Palo Alto, or any vendor NVA in our VNET. It is a flat VNET which has several subnets. And we want all our traffic to route via the NVA for filtering. Without Route Server, we have to implement single, or multiple, Route Tables on the subnets and manually manage route modifications on the NVA. Meaning a lot of admin overhead and room for potential user error.

Route Server removes this requirement, which believe me, on complex NVA hub-spoke designs is very welcome. The service leverages BGP to expose the system routing table of the VNET to allow the NVA write directly. Similarly, the NVA can learn routes from the VNET as they update, for example, the addition of a peering.

Creation of the service itself is very simple, a dedicated subnet of /27 or larger named RouteServerSubnet and a Public IP. Essentially a similar creation process to Azure Bastion. Guides for deployment are well documented, and include IaC options (although no Bicep example as yet).

Once Route Server is built, you then peer, and complete configuration as required with your NVA(s). Route Server advertises an ASN and IPs from the dedicated subnet for this, as below

I’ve only mentioned NVAs to this point, but Route Server also works with Virtual Network Gateways, supporting both VPNs and ExpressRoute. Integration here is even tighter, you don’t need to configure the peering, you just enable the switch within Route Server. This switch is called Route Exchange, and when enabled, your NVA and ExpressRoute wil learn each others routes.

One thing I have found so far is that this seems more like a service that should be enabled on the VNET itself, like DNS or Service Endpoints, rather than a resource you have to build and configure. Having it “built into” every VNET would seem like the better option to me, and would definitely be cleaner.

Also, there doesn’t appear to be any integration offered with Azure Firewall as yet, however, I want to dig a bit more on that and will update this post accordingly.

Perhaps someday we will get a VNET Version 2.0 which includes the likes of Route Server, Bastion etc all within the one blade and configuration item!

Until then however, if you want to try out Route Server, the absolute best option is to follow the Docs tutorial which covers everything except Virtual Network Gateway, although you could add that on yourself manually if required as I did (ping me if you need help). The full tutorial is here and is a really clean implementation and removal which gives you the ability to test each feature.

One thing that did catch me out here was advertising the default route, however, while I realised my mistake and corrected it with a UDR, I was glad to see this configuration issue, and others are already documented.

Before deploying to production, consider the FAQ to ensure you understand limits and supported scenarios. Peer and route limits are specifically important here for larger designs!

As always, if you have any questions, get in touch!
