Securing Azure PaaS

When considering Azure as a platform, part of the conversation should revolve around transformation. That is, how do we transform our approach from what is viewed as traditional to something more modern. Often this could lead to redesigning how your application/service is deployed, but with some workflows, a simple change from IaaS to PaaS is viewed as a quick win.

This change isn’t suitable in all scenarios, but depending on your specific requirement it could allow for greater resiliency, a reduction in costs, and a simpler administration requirement. One service that is often considered is SQL. Azure has its own PaaS SQL offering which removes the need for you to manage the underlying infrastructure. That alone makes the transformation a worthy consideration.

However, what isn’t often immediately apparent to some administrators is that PaaS offerings are, by their nature, public facing. For Azure SQL to be as resilient as possible and scale responsively, it sits behind a public FQDN. Therefore, how this FQDN is secured must be taken into consideration as a priority to ensure your data is protected appropriately.

Thankfully, Azure SQL comes with a built in firewall service. Initially, all Transact-SQL access to your Azure SQL server is blocked by the firewall. To allow traffic, you must specify one or more server-level firewall rules that enable access. The firewall rules specify which IP address ranges from the Internet are allowed. There is also the ability to choose whether Azure applications can connect to your Azure SQL server.

The ability to grant access to just one of the databases within your Azure SQL server is also possible. You simply create a database-level rule for the required database. However, while this limits the traffic to specific IP ranges, the traffic still flows via the internet.

To communicate with Azure SQL privately, you will first need an Azure V-Net. Once in place, you must enable the service endpoint for Azure SQL, see here. This will allow communication directly between listed subnets within your v-net and Azure SQL via the Azure backbone. This traffic is more secure and possibly faster than via the internet.

Once your endpoint is enabled, you can then create a v-net firewall rule on Azure SQL for the subnet which had a service endpoint enabled. All endpoints within the subnet will have access to all databases. You can repeat these steps to add additional subnets. If adding your v-net replaces the previous IP rules, remember to remove them from your Azure SQL firewall rules.

Also worth noting is the option for “Allow all Azure Services”, the presumption here is that this somehow would only access from Azure Services within your subscription, but this is not the case. It means every single Azure service in all subscriptions, even mine! My recommendation is to avoid this whenever possible, however, there are some cases where this required and this access should be noted as a risk.

More on Azure SQL Firewall – https://docs.microsoft.com/en-us/azure/sql-database/sql-database-firewall-configure

More on Azure SQL with V-Nets – https://docs.microsoft.com/en-us/azure/sql-database/sql-database-vnet-service-endpoint-rule-overview



Optimising Azure Disk Performance

When deploying a VM, there are several aspects of configuration to consider to ensure you are achieving the best possible performance for your application.  The most common are vCPU and RAM, however, I recommend equal consideration also be given to your disks.

In Azure, the are multiple options available when provisioning a disk for a VM. The recommendation from Microsoft is to use Managed Disks and depending on performance required choose either Standard or Premium tier. As this post is about performance, I am going to discuss Premium tier Managed Disks (PMD).

For most applications/services, if you choose the closest sizing for the VM and provision the disk as PMD, this will more than meet your requirements. However, should you have heavy read/write requirements, you may need to maximise your disk performance to ensure you are also maximising your other resources.

When talking about disk performance there will be references to disk IOPS and throughput, it is important to have an understanding of both concepts.

IOPS is the number of requests that your application is sending to the storage disks in one second. An input/output operation could be read or write, sequential or random.

Throughput or Bandwidth is the amount of data that your application is sending to the storage disks in a specified interval. If your application is performing input/output operations with large IO unit sizes, it requires high Throughput.

How actual disk performance is calculated for your VM is slightly complex. There are several variables that effect what performance is available, achievable and when you should expect throttling to occur. The key aspects however are:

  1. Virtual Machine Size
  2. Managed Disk Size

As you move up VM sizes, you don’t just increase the amount of vCPU and RAM available, you also increase the allocated IOPS and Throughput. In the following examples I’ll be comparing a DS12v2 and a DS13v2, below are their listed specifications:



Size vCPU Memory: GiB Temp storage (SSD) GiB Max data disks Max cached and temp storage throughput: IOPS / MBps Max uncached disk throughput: IOPS / MBps
Standard_DS12_v2 4 28 56 16 16,000 / 128 (144) 12,800 / 192
Standard_DS13_v2 8 56 112 32 32,000 / 256 (288) 25,600 / 384

As you can see there are significant differences across the board in terms of specifications, however, we’ll focus on the final two columns which are disk related. There are two channels of performance for disks attached to VMs. This relates to whether you choose to enabling caching on your disks. For the OS disk, Microsoft recommends read/write cache and enables it by default however for data disks, the choice is up to you. IOPS are higher when caching but throughput is lower, so it will be application/service dependent.

Similarly, as you move up PMD sizes, you increase the IOPS and Throughput available. See below for table highlighting this:

Premium Disks Type P4 P6 P10 P20 P30 P40 P50
Disk size 32 GB 64 GB 128 GB 512 GB 1024 GB (1 TB) 2048 GB (2 TB) 4095 GB (4 TB)
IOPS per disk 120 240 500 2300 5000 7500 7500
Throughput per disk 25 MB per second 50 MB per second 100 MB per second 150 MB per second 200 MB per second 250 MB per second 250 MB per second

You can see that Throughput will max out at 250mb however, on a DS13v2 if uncached you can get a maximum of 384mb. A similar restriction applies with IOPS. To achieve performance above the listed for PMD and in line with your VM size, you need to combine the disks.

For example, two P20s will give you 1TB of storage and roughly 300mb Throughput in comparison to a P30 which gives same storage but only 200mb Throughput. Obviously there is a cost consideration, but performance may justify this. To achieve this disk combination, it is best to use Storage Spaces in Windows to perform disk striping. More on that here – (Server 2016 – https://docs.microsoft.com/en-us/windows-server/storage/storage-spaces/deploy-storage-spaces-direct).

As a demo I completed the above and below are captures of testing throughput for the same scenario on a DS13v2. Firstly is our striped virtual disk. Same storage, maximum throughput.

DiskStripe

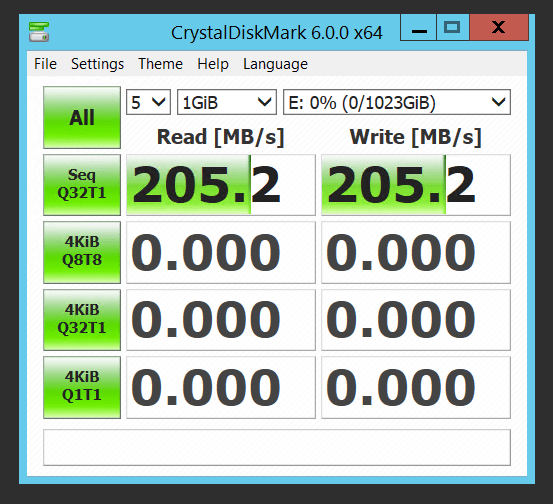

On the same VM, our single disk, same storage available, lower throughput.

DiskSimple

A simple change to how your storage is attached produces a 50% increase in performance.

While not always applicable, changes such as the above could prove vital when considering how to size a VM for a database and at the same time ensure you are maximisng that cost/performance ratio.

More links on sizing etc.

Premium Storage Performance
VM Sizes



Virtual Network Service Endpoints

When designing an application deployment to be hosted in Azure, a design consideration that is commonly enticing is to transform a layer of the application from traditional infrastructure to something more modern. Microsoft offer several Platform-as-a-service (PAAS) options that allow this to be achieved, for example, transforming SQL server installed on a VM to Azure SQL.

While this transformation might be straight forward from an SQL Database point of view and most likely when considering the cost of running your deployment, a concern that often arises is security. As Azure SQL is PAAS, it offers a public endpoint for SQL authentication and connectivity. This is by design and there are limited options to prefix this with a security layer. If your application runs somewhere outside Azure, this makes sense and might be an acceptable and noted weak spot. However, if the rest of your application layers are hosted within Azure, having to route out to a public endpoint is less secure than it could be and simply bad design.

Thankfully, Microsoft have been making updates to virtual network functionality that allow you to route directly from your virtual network resources to several PAAS offerings. To do this, you must make use of virtual network Service Endpoints.

Endpoints extend your virtual network private address space and the identity of your VNet to specific Azure services, over a direct connection. Endpoints allow you to secure your critical Azure service resources, such as Azure SQL, to only your virtual networks. Traffic from your VNet to the Azure service always remains on the Microsoft Azure backbone network and never takes a public route. They are currently available for three PAAS offerings:

  1. Azure SQL
  2. Azure Storage
  3. Azure Data Warehouse (Preview)

Introducing an Endpoint for Azure SQL (to stick with the initial example) allows improved security as it fully removes public Internet access and allows traffic only from the virtual network.

It also optimises routing as Endpoints always take service traffic directly from your virtual network to the service itself on the Microsoft Azure backbone network. Doing this means that if your environment uses forced-tunnelling this traffic will no longer be viewed as outbound, but intra-Azure and will flow direct.

There are some considerations to be aware of:

  • Location – the virtual network and the PAAS offering must be located in the same region.
  • Outbound Network Flow – if you control outbound network flow via NSG, you can make use of the “Azure Service” tags to allow this traffic via Endpoint.
  • Connections – If you enable a service endpoint, all current TCP connections from your virtual network will drop. This is to allow a change from Public IP access to Private.

Personally, I think Endpoints should be used as widely as possible. From a security and design perspective they allow greater ease of adoption when PAAS offerings are being considered and perhaps best of all, they are free!
